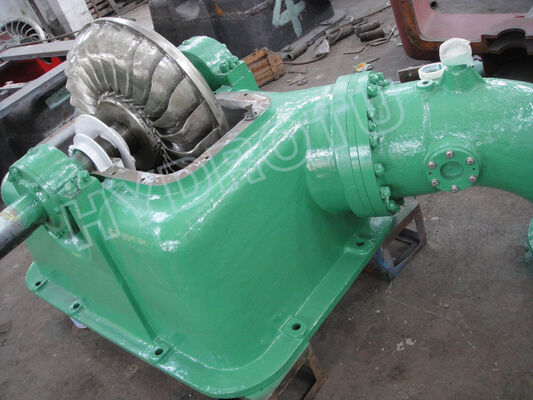

Turgo Hydro Turbine 100KW-2000KW with 70m-200m Head Range and 88% Efficiency

Product Description:

The Turgo Hydro Turbine is a highly efficient and robust solution designed for medium to high head hydroelectric power generation. Specifically engineered to operate within a head range of 70 meters to 200 meters, this turbine is ideal for harnessing the kinetic energy of fast-flowing water streams, making it an excellent choice for diverse hydroelectric projects. The Turgo Hydro Turbine stands out as a reliable hydroelectric machine that offers a perfect balance of performance, durability, and cost-effectiveness.

With a rated output capacity ranging from 100KW to 2000KW, the Turgo Hydro Turbine caters to small to medium-scale power generation needs. This versatile range enables it to be deployed in various applications, from remote off-grid installations to larger community or industrial power supplies. Its flexibility in power output makes it an an attractive option for maximizing energy capture from available water resources, ensuring that power generation remains consistent and efficient under different operational conditions.

One of the key strengths of the Turgo Hydro Turbine is its impressive efficiency, which can reach up to 88%. This high efficiency is achieved through advanced hydraulic design and precision engineering, which minimizes energy losses and maximizes the conversion of water energy into mechanical power. Such efficiency levels not only enhance the overall performance of the hydroelectric machine but also contribute to reducing operational costs and improving the return on investment for hydroelectric projects.

The turbine features a horizontal shaft configuration, which simplifies the installation process and facilitates easier maintenance and inspection. This configuration is particularly advantageous in constrained spaces or where straightforward alignment with the generator is required. The horizontal shaft design also contributes to the compactness and stability of the system, ensuring smooth and reliable operation even under fluctuating water flow conditions.

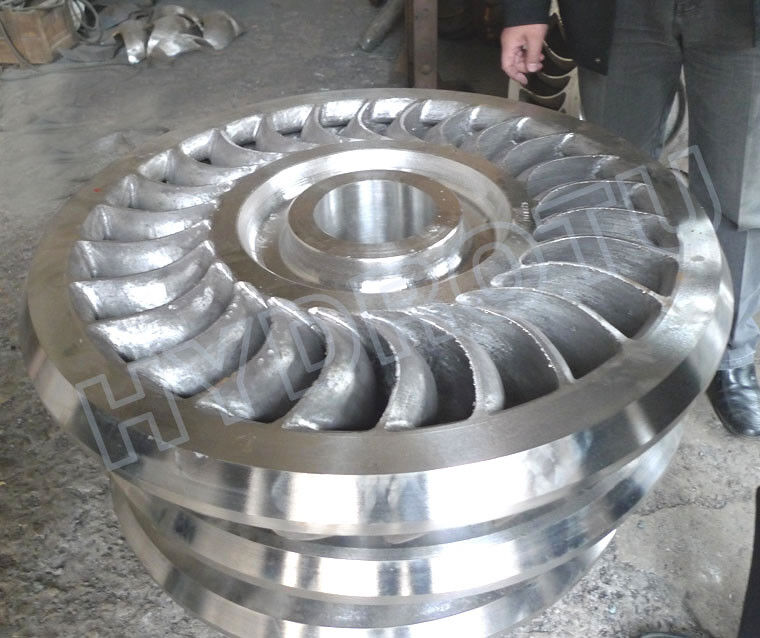

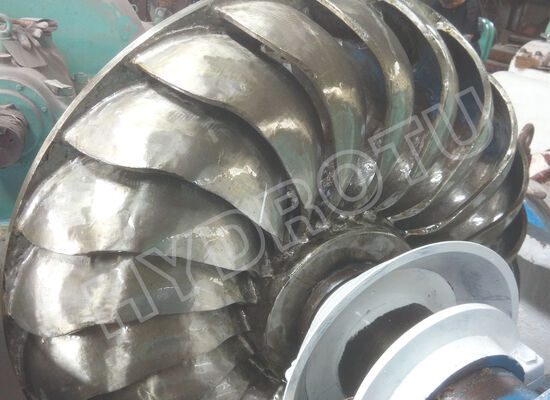

Durability and longevity are paramount in hydro turbine design, and the Turgo Hydro Turbine excels in this respect with its runner material crafted from high-quality stainless steel (0Cr13Ni4Mo). This material is known for its excellent corrosion resistance, mechanical strength, and wear resistance, making it well-suited to withstand the harsh environments and abrasive particles often encountered in hydroelectric applications. The use of stainless steel ensures that the turbine runner maintains its structural integrity and performance over extended periods, thereby reducing maintenance frequency and downtime.

The Turgo Hydro Turbine is often compared to the Pelton hydro turbine due to similarities in operating head and power ranges. However, the Turgo design offers unique advantages, such as a simpler water jet arrangement and the ability to handle higher flow rates for a given runner diameter. This makes it particularly effective in applications where water availability varies seasonally or where a more compact installation footprint is needed. As a hydroelectric machine, it effectively converts the energy of water into mechanical energy, which is then transformed into electrical energy by the turbine power generator.

In summary, the Turgo Hydro Turbine is an excellent choice for those seeking a reliable, efficient, and durable turbine power generator wate solution. Its capability to operate efficiently within a broad head range of 70m to 200m, combined with rated outputs from 100KW to 2000KW and an efficiency of up to 88%, ensures optimal energy production. The horizontal shaft configuration and stainless steel runner material further enhance its appeal by providing ease of installation, maintenance, and long-term resilience. Whether for small-scale local power needs or more substantial hydroelectric projects, the Turgo Hydro Turbine represents a smart investment in sustainable and clean energy generation.

Features:

• Product Name: Turgo Hydro Turbine
• Runner Material: Stainless Steel (0Cr13Ni4Mo)
• Maintenance: Low Maintenance Requirements
• Rated Output: 100KW-2000KW
• Configuration: Horizontal Shaft
• Turbine Type: Turgo Turbine
• Efficient turbinre power generator wate suitable for various water flow conditions
• High-performance water driven turbine designed for impulse water turbine applications

Technical Parameters:

Applications:

The HYDROTU Turgo Hydro Turbine, model XJA-W, originating from China, is a highly efficient hydro power solution designed to harness water energy in diverse settings. With an impressive efficiency of up to 88%, this Turgo type waterwheel operates optimally within a head range of 70m to 200m, making it suitable for medium to high head hydroelectric projects. The turbine’s ability to function at both 50Hz and 60Hz frequencies allows it to be integrated seamlessly into various electrical grids worldwide.

One of the primary application occasions for the HYDROTU XJA-W Turgo Hydro Turbine is in small to medium hydroelectric power plants, where the demand for reliable and efficient energy generation is critical. The Turgo turbine design is particularly advantageous in locations where water flow is variable, as it can handle higher flow rates than traditional Pelton hydro turbines while maintaining excellent efficiency. This makes it ideal for rivers and streams with fluctuating water volumes.

The Hydro turbine runner used in the XJA-W model is engineered to maximize energy extraction from water jets, converting kinetic energy into mechanical power with minimal losses. This design is advantageous for remote or off-grid communities seeking sustainable power solutions, as well as industrial facilities aiming to reduce their carbon footprint by utilizing renewable energy sources. The synchro generator integrated with the turbine ensures stable and synchronous power output, enhancing grid compatibility.

Delivery of the HYDROTU Turgo Hydro Turbine requires a lead time of 5 to 6 months, reflecting the precision engineering and customization involved in manufacturing. With a minimum order quantity of just one unit and payment terms supported via Letter of Credit (L/C), this product is accessible to a wide range of customers, from individual project developers to large-scale energy companies.

In summary, the HYDROTU XJA-W Turgo Hydro Turbine is well-suited for hydroelectric projects in mountainous or hilly regions where the head range fits within 70m to 200m. It excels in applications demanding high efficiency, adaptability to varying water flows, and reliable synchronization with electrical grids. Whether replacing or complementing Pelton hydro turbines, the Turgo type waterwheel offers a versatile and effective option for sustainable hydro energy generation.

Customization:

HYDROTU offers customized Turgo Hydro Turbine solutions with the model number XJA-W, proudly made in CHINA. Our water flow driven turbine is designed for efficient energy generation with a horizontal shaft configuration, suitable for head ranges between 70m and 200m.

This water turbine device operates at a frequency of 50Hz or 60Hz and delivers a rated output ranging from 100KW to 2000KW, making it an ideal water driven turbine for various hydroelectric projects.

We accept a minimum order quantity of one unit, with a delivery time of 5-6 months. Payment terms are handled via L/C to ensure a smooth transaction process.

Additionally, the Turgo Hydro Turbine requires low maintenance, ensuring long-term reliability and cost efficiency for your water flow driven turbine needs.

Support and Services:

Our Turgo Hydro Turbine is designed for high efficiency and reliability in small to medium scale hydroelectric power generation. To ensure optimal performance and longevity of your turbine, we offer comprehensive technical support and services.

Technical support includes assistance with installation, operation, and maintenance procedures. Our team of experts is available to provide guidance on site assessment, turbine selection, and system integration to match your specific energy needs.

We provide detailed user manuals, maintenance schedules, and troubleshooting guides to help you keep your Turgo Hydro Turbine operating at peak efficiency. Regular maintenance services, including inspection, cleaning, and parts replacement, are recommended to prevent downtime and extend the life of the turbine.

In addition, we offer training programs for your operational staff to ensure proper handling and routine maintenance of the equipment. Our after-sales service includes prompt response to technical inquiries and support for any warranty claims.

For customized solutions, upgrades, and retrofit services, our engineering team can work with you to enhance the performance and capacity of your existing Turgo Hydro Turbine installation.

We are committed to providing exceptional support and services to maximize the value and output of your hydro turbine investment.

Packing and Shipping:

Product Packaging and Shipping for Turgo Hydro Turbine

The Turgo Hydro Turbine is carefully packaged to ensure safe transportation and delivery. Each unit is securely wrapped with protective materials to prevent damage during handling and transit. The turbine components are placed in a sturdy, custom-designed box that provides cushioning and support.

For shipping, we use reliable carriers with tracking options to guarantee timely and secure delivery. The packaging is labeled clearly with handling instructions and product information. Depending on the order size, the turbine may be shipped individually or palletized for bulk orders, ensuring optimal protection throughout the shipping process.

We recommend inspecting the package upon arrival and reporting any damage immediately to facilitate prompt assistance.

FAQ:

Q1: What is the water head range of the Turgo Hydro Turbine?

A1: The Turgo Hydro Turbine water head is from 70m-200m.

Q2: Where is the Turgo Hydro Turbine manufactured?

A2: The Turgo Hydro Turbine is manufactured in China.

Q3: What is the minimum order quantity for the Turgo Hydro Turbine?

A3: The minimum order quantity for the Turgo Hydro Turbine is one unit.

Q4: How long is the delivery time for the Turgo Hydro Turbine?

A4: The delivery time for the Turgo Hydro Turbine is approximately 5-6 months.

Q5: What payment terms are accepted for purchasing the Turgo Hydro Turbine?

A5: The accepted payment term for the Turgo Hydro Turbine is Letter of Credit (L/C).
